20mm P2000 Active 35/92 SPL Mortise Lock Body – American

20mm P2000 Active 35/92 Single Point Mortise Lock Body – American Version

This 20mm P2000 Active 35/92 SPL Mortise Lock Body is designed as a replacement lock for doors originally equipped with compatible Amesbury® multipoint lock systems (MPL). It features a single point lock (SPL) mechanism, meaning it includes a spring latch and deadbolt only, not a multipoint locking function. The compact 60/92 gearbox configuration makes it suitable for many doors where a single point locking solution is needed.

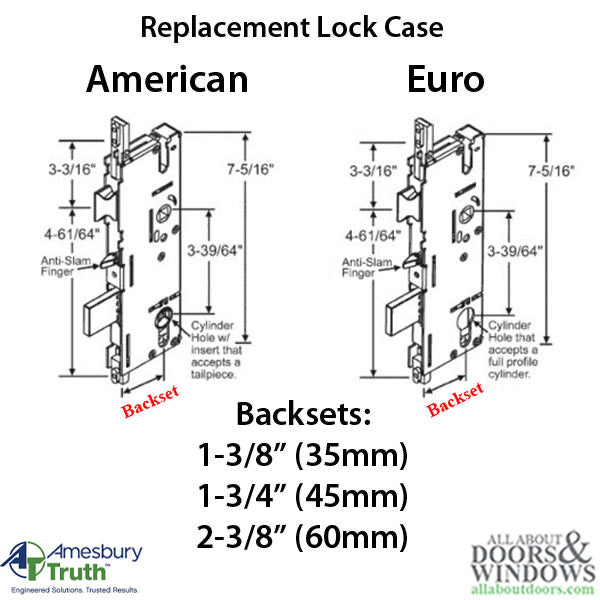

This mortise lock body is specifically intended to replace the active gearbox portion of existing Amesbury® multipoint lock cases that match the same size and configuration. The lock case is constructed for use in standard American-style doors requiring a single point locking mortise system, providing reliable operation and security.

Handing or latch reversal is user-friendly: simply extend the deadbolt, pull the spring latch out, rotate to the correct position, and check the function before closing the door. No complex disassembly required.

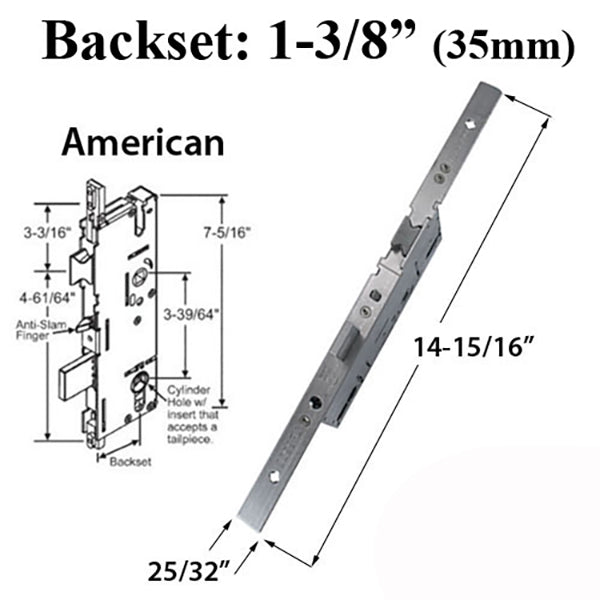

Technical Information

• Faceplate Width: 20mm (0.79")
• Backset: 35mm (1-3/8")
• Center Distance (PZ): 92mm (3.62")
• Gearbox Size: 60/92 (60mm (2.4") case, 92mm (3.62") cylinder/spindle centers)
• Lock Type: Single Point (deadbolt and spring latch only)

Notes

• Designed to directly replace active gearboxes in compatible Amesbury® multipoint locking systems with the same specifications.
• This is not a multipoint lock and will not provide MPL functionality.
• For proper operation, always test the handing and latch reversal after installation.

Sold individually. Always measure your existing lock case and door cutouts carefully to ensure correct fit before ordering. Double-check all critical measurements to ensure compatibility with your application.
