14.75, 10Inch Track, 4-29/32Inch Opening
- Regular price
- $47.20
- Regular price
-
- Sale price
- $47.20
- Unit price
- per
Vendor : Amesbury Truth Hardware
Product Type : Hardware
Sku :

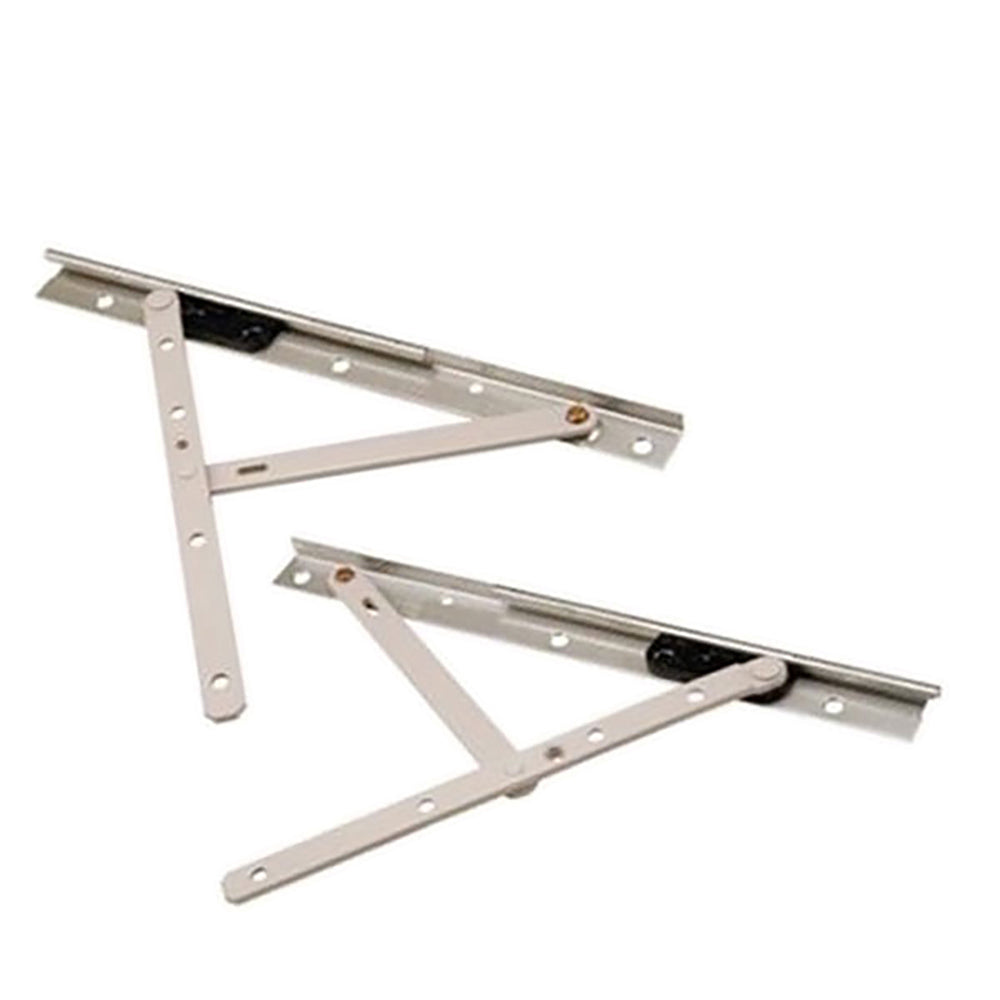

Truth® 14.75.00.270 / .271 concealed casement hinge assembly, 10 inch stainless steel track and hinge arms
This kit is comprised of four (4) Amesbury Truth® components to make a pair of upper and lower hinge assemblies for casement windows. Screws are not included, type of screws required determined by application and material of profile being used.
This kit will fit left or right hand casement windows.
Application: Casement Window, Standard Hinges
Track Length: 10 inches
Track Width: 7/16 inch
Track Material: Stainless Steel with Brass Stud
Window Hinge Opening: 4-29/32 inch
Arm Lengths: Long link is 7-11/16 inches, shorter detachable link is 5-1/2 inches
Arm Material: E-Gard®, corrosion resistant finish
Stack Height: 7/16 inch
Handed: Yes, Right Hand and Left hand Pair
Sold in Pairs: 1 Upper, 1 Lower
NOTE: The Hinges are handed Left and Right, a pair will work on a left or right hand window.
Note 2: Truth’s E-Gard® Hardware has a multi-stage coating process that produces a superior physical and aesthetic finish. Resistant to a wider range of corrosive materials, including industrial cleaning materials and environmental pollutants. Approximately three times better than common zinc plated finishes.
Additional Information:
* 14.05 Adjustable, 14.75 E-Gard® and 14.80 Stainless Steel are the same size, different materials
* Truth® numbers may appear on hinge arm of 14.75 hinge: 30744, 31133, 31230, 40942, 40941, 6D103, 331778, 31133C
* The recommended screws for the 14.75 are #7 x 3/4 inch, stainless steel, Phillips Flat Head, Sheet Metal Screw for the sash arm and track. Actual screw size may vary depending on application and window material.
This kit is comprised of four (4) Amesbury Truth® components to make a pair of upper and lower hinge assemblies for casement windows. Screws are not included, type of screws required determined by application and material of profile being used.
This kit will fit left or right hand casement windows.
Application: Casement Window, Standard Hinges
Track Length: 10 inches
Track Width: 7/16 inch
Track Material: Stainless Steel with Brass Stud
Window Hinge Opening: 4-29/32 inch
Arm Lengths: Long link is 7-11/16 inches, shorter detachable link is 5-1/2 inches
Arm Material: E-Gard®, corrosion resistant finish
Stack Height: 7/16 inch
Handed: Yes, Right Hand and Left hand Pair
Sold in Pairs: 1 Upper, 1 Lower
NOTE: The Hinges are handed Left and Right, a pair will work on a left or right hand window.
Note 2: Truth’s E-Gard® Hardware has a multi-stage coating process that produces a superior physical and aesthetic finish. Resistant to a wider range of corrosive materials, including industrial cleaning materials and environmental pollutants. Approximately three times better than common zinc plated finishes.
Additional Information:
* 14.05 Adjustable, 14.75 E-Gard® and 14.80 Stainless Steel are the same size, different materials
* Truth® numbers may appear on hinge arm of 14.75 hinge: 30744, 31133, 31230, 40942, 40941, 6D103, 331778, 31133C
* The recommended screws for the 14.75 are #7 x 3/4 inch, stainless steel, Phillips Flat Head, Sheet Metal Screw for the sash arm and track. Actual screw size may vary depending on application and window material.
