Extra Heavy Duty 1/2" Ribbed Channel Balance for Vinyl Jambliners, Weather Shield #17 End Bracket
- Regular price
- $19.95
- Regular price
-
- Sale price
- $19.95
- Unit price
- per
Vendor: Weathershield
Product Type: Hardware
Sku: 620217WS-G-24W
Extra heavy duty 1/2" (12.7mm) ribbed channel balance with #17 end bracket, designed for wood double hung tilt-in windows with vinyl jambliners from Weather Shield (1999–2005). Features a 9/16" (14.3mm) width, 5/8" (15.9mm) depth, and varied lengths from 10" (254mm) to 52" (1321mm). Color-coded green end bracket marks extra heavy duty rating; may show minor scratches due to age and shipping.
Couldn't load pickup availability
1/2" Ribbed Channel Balance for Vinyl Jambliners, Extra Heavy Duty — Weather Shield #17 End Bracket
This is an extra heavy duty 1/2" ribbed channel balance designed specifically for use with wood double hung tilt-in windows that feature vinyl jambliners, commonly found on Weather Shield premium wood and clad windows produced between 1999 and 2005. Not recommended for vinyl windows, this balance is tailored for original installations with vinyl-lined wood jambs.
The balance includes a color-coded #17 end bracket (green indicates extra heavy duty) and was available in beige and white to match various jambliner colors. Color codes help identify the duty rating for replacements: white or black for regular/heavy, blue for triple, green for extra heavy, and red for super duty. This listing covers extra heavy duty.
Due to age (from 2005) and typical shipping processes, there may be minor cosmetic scratching, but these do not impact function. Inventory is limited to stock on hand. If your required size is out of stock, see this alternative replacement channel balance.
Most Weathershield pivot pins are compatible with available replacement balances. For related parts, matching left and right hand tilt window cam pivot pins are available: left hand (640015) and right hand (640016).
Technical Information
- Balance Width: 9/16" (14.3mm)
- Balance Depth: 5/8" (15.9mm)
- Balance Length: Varies, 10"–52" (254–1321mm)
- End Bracket: #17 (green color code for extra heavy duty)
- Material: Steel channel with vinyl/fiber guides
Notes
- For wood windows with vinyl jamb liners only; will not fit vinyl window frames.

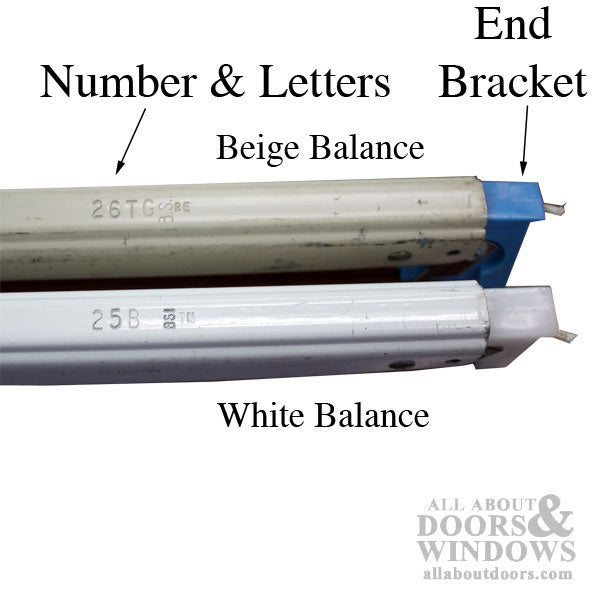

- Available in beige and white to match jambliner color.
- Minor cosmetic scratches possible due to age/shipping.
- Limited to existing inventory.
Replaces / Replaced by
- If unavailable, see 1/2" Ribbed Channel Balance with #02 End Bracket as a replacement.
Sold individually. Please verify balance length and end bracket color code before ordering for correct fit. Always measure existing hardware carefully to ensure compatibility before purchasing.
