Giesse Asia Plus Outward 0-90 Cremone Handle, Silver, 70mm

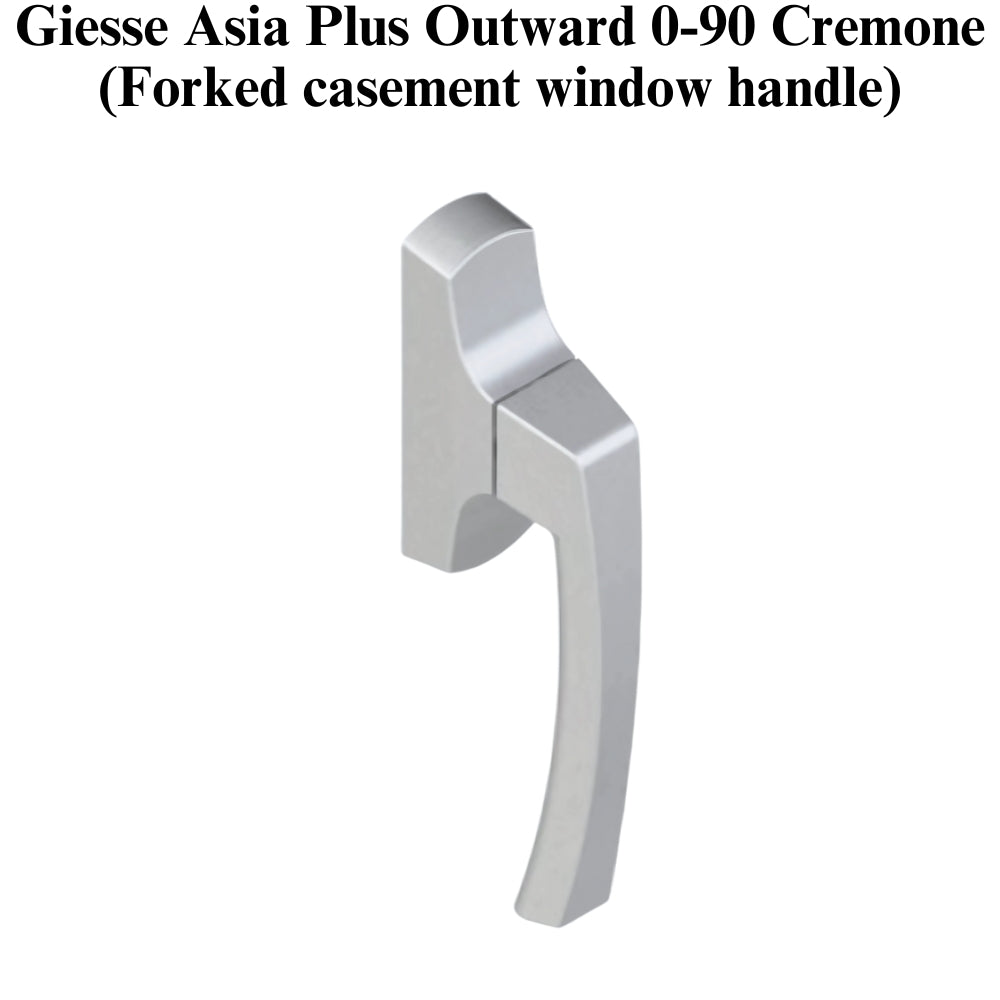

Giesse Asia Plus Outward 0-90 Cremone Handle – Silver

The Giesse Asia Plus Outward 0-90 Cremone Handle is designed for use with outward opening windows and doors requiring a secure and reliable one-way closing system. This handle positions at 0° and 90°, making it suitable for applications where precise handle placement is important for both operation and locking.

This listing is for the handle only and does not include drive rods or fork. The handle is constructed from aluminum and finished in Giesse Silver. For proper function, it should be matched with Giesse outward-opening fork kits and drive rod devices (sold separately).

The cremone handle features a fixing center-to-center distance of 2-3/4" (70mm), making it compatible with select window and door systems that require this specification. The handle also includes pre-installed threaded rivets for straightforward screw installation and is typically mounted using two screws (top and bottom).

Technical Information

• Application: Outward opening windows and doors
• Material: Aluminum
• Finish: Giesse Silver

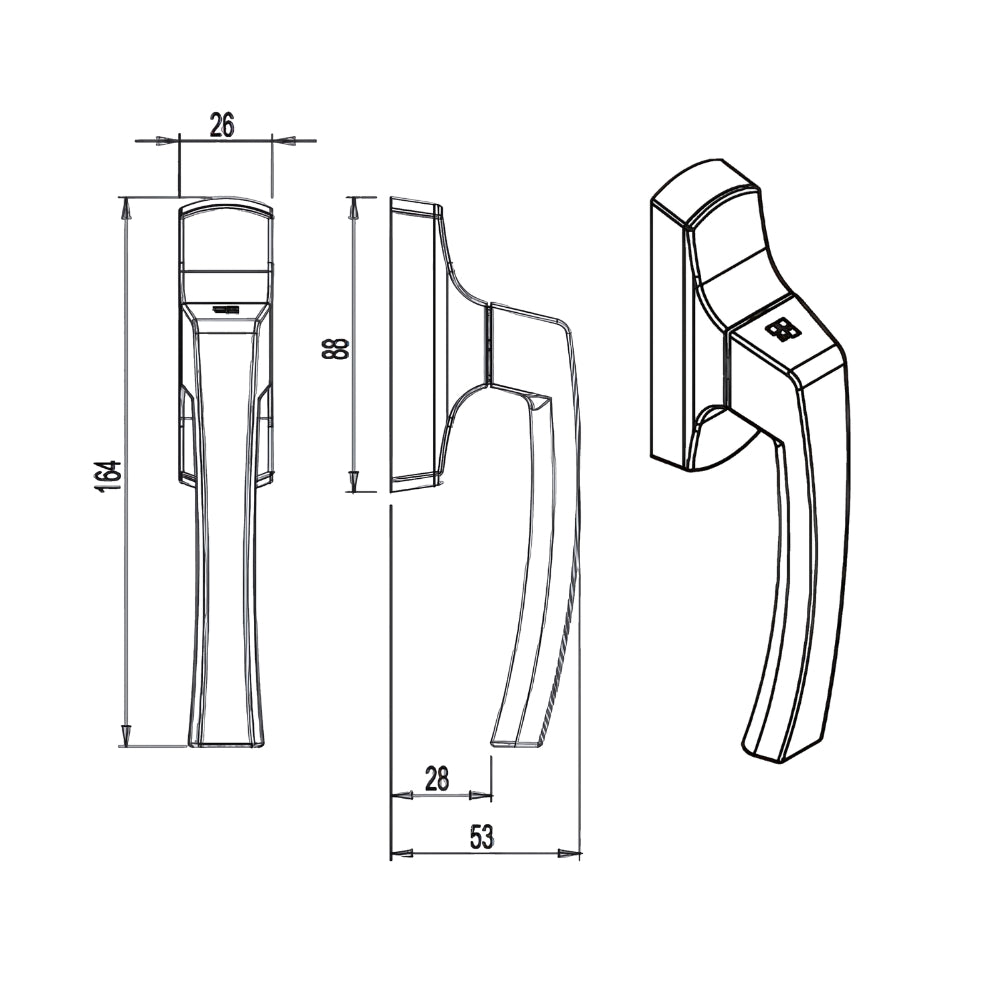

• Base Width: 1-1/32" (26.0mm)
• Base Length: 3-7/16" (88.0mm)
• Overall Length: 6-15/32" (164.0mm)
• Screw Holes (Center-to-Center): 2-3/4" (70.0mm)
• Screw Hole Width: 19/32" (15.0mm)
• Color Options: Pure White, Pearl White, Cream White, Bright White, Silver, Brown, Black (some may be special order)

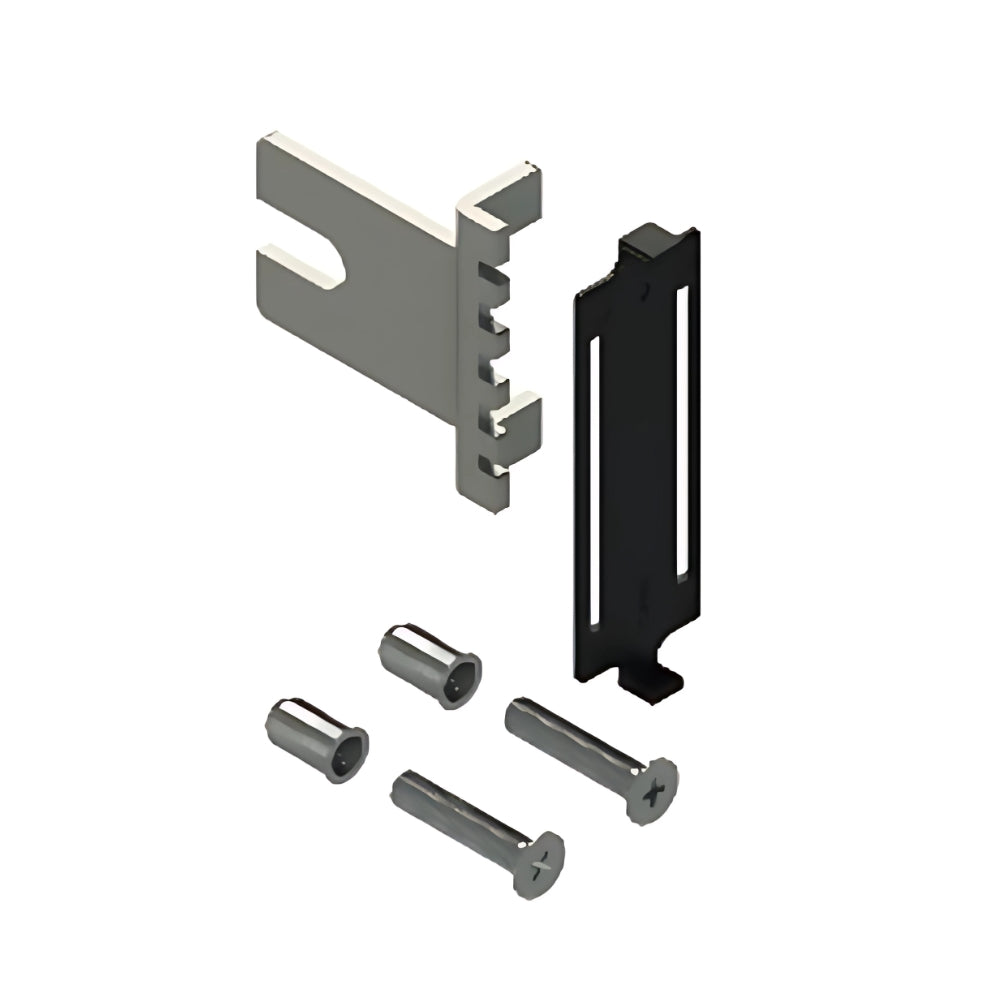

• Markings: C5442 on fork (fork not included with handle)

Notes

• This product is the handle only; fork, drive rods, and mounting screws are sold separately.
• Normal installation uses two screws, placed top and bottom.

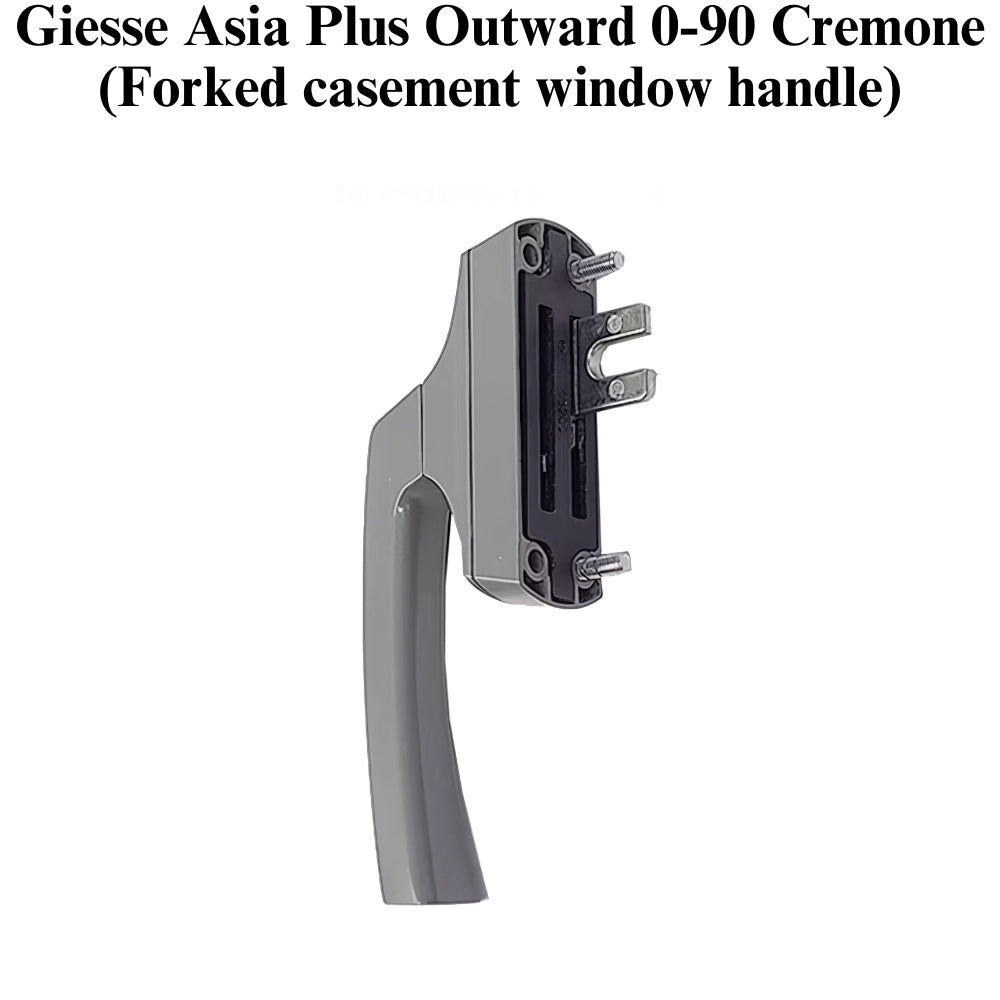

• Threaded rivets are pre-installed for securing to the sash or frame.
• For matching fork and drive rod kits, reference the following Giesse Outward Opening Kits: 02025 (20mm), 02026 (28mm), 02027 (35mm), 02028 (45mm), 02029 (55mm), 02050 (65mm).
• Color options may require special ordering; contact for availability.

Carefully measure your existing hardware and mounting hole spacing to ensure this cremone handle fits your application before ordering. It is important to verify all dimensions for proper fit and compatibility.
